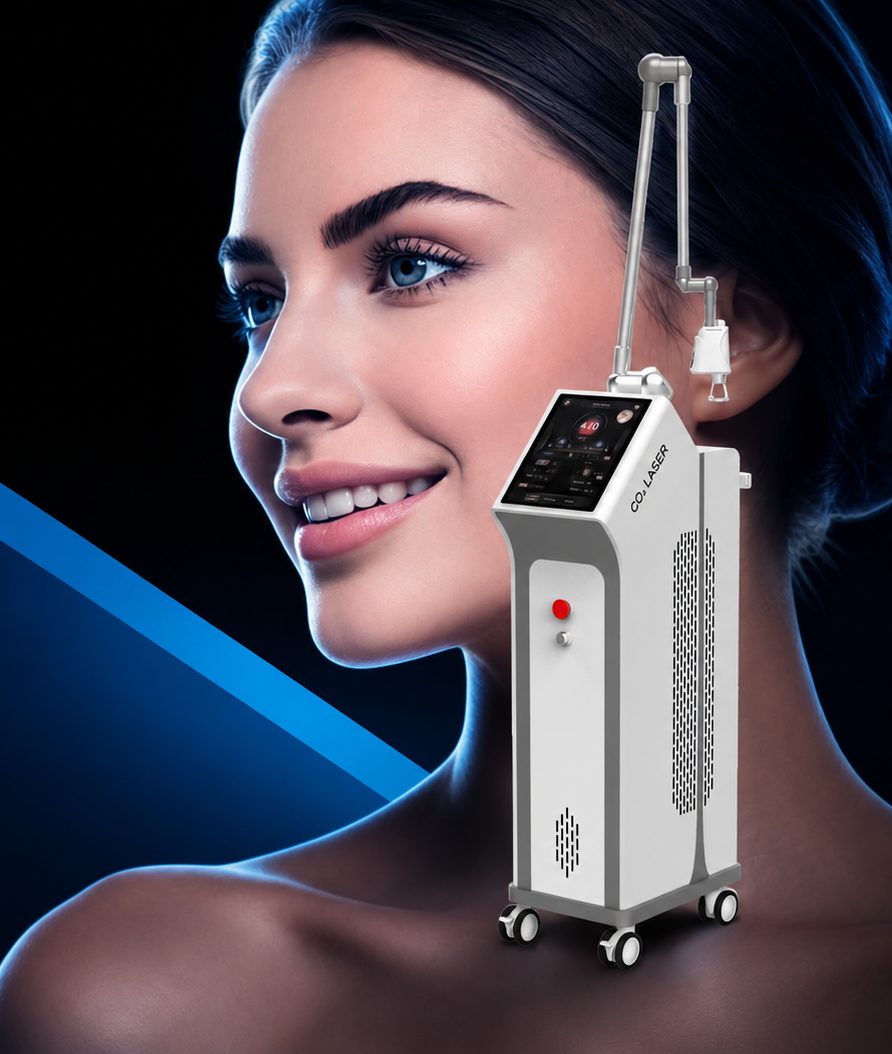

Fractional CO₂ laser · 10,600 nm
CO2LD
A 40 W ablative resurfacing and surgical platform. Coherent RF tube, 20 × 20 mm scanning and three fractional modes in one system, with no consumables.
How it works

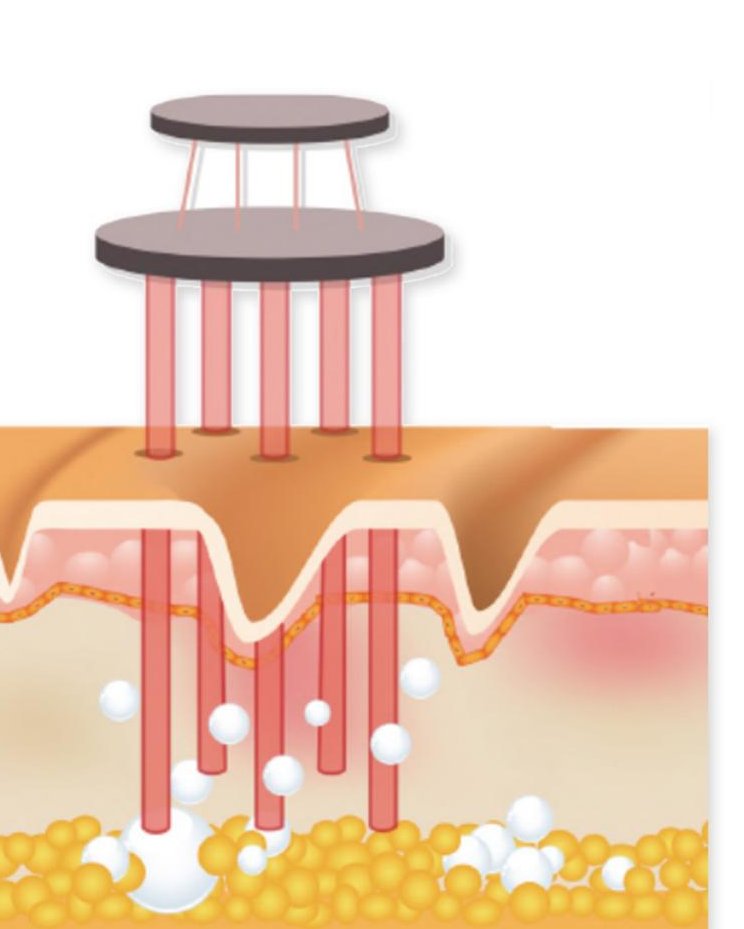

Hundreds of micro-thermal zones, intact tissue between them
A scanner and spatial lens array split the confluent CO₂ beam into many fine beams. Each one vaporizes a narrow column of tissue while the skin around it stays untouched, so the body heals from the inside out.
The result avoids the adverse reactions of fully ablative resurfacing while overcoming the limited efficacy of non-ablative methods.
- Strong water absorption
- Clean vaporization
- Minimal thermal diffusion
- Fast healing
Fractional resurfacing modes
Light, Deep and Fusion
Three modes target the superficial and deep layers of the skin separately or together, so one system can run a quick peel or a full scar-revision protocol.
Superficial peelLight
Spiral emission ablates the superficial epidermal layer. Suited to epidermal pigment such as age spots and sun spots, enlarged pores and rough texture, with fast recovery.
Deep activationDeep
Penetrates deep into the dermis to activate collagen and promote neocollagenesis. Suited to ageing skin concerns and wrinkles.
Two-stage deliveryFusion
For scars and acne pits. First targets the deep dermis to soften connective tissue, then the basal epidermal layer to activate the skin's regenerative function.
Platform
Built for the treatment room

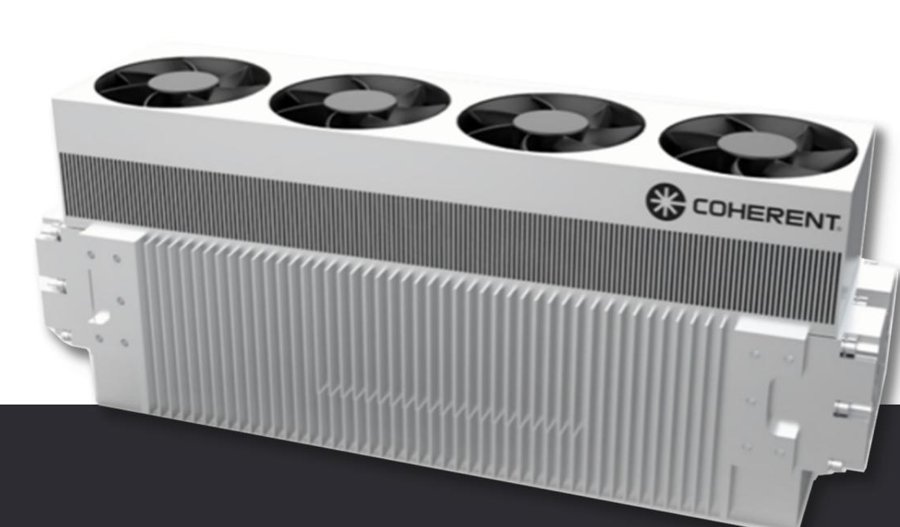

40 W Coherent RF tube
High beam quality, uniform energy distribution and stable output with minimal fluctuation. High power allows lower MTZ density and shorter pulses at the ideal ablation depth, limiting unnecessary thermal damage. Long service life keeps maintenance costs low.
Spiral pattern and in-motion modes
A unique spiral pattern treats superficial pigment. Order, Center and Random scan modes use in-motion technology for full-face resurfacing, with circle, ellipse, triangle, rectangle, square, hexagon and line shapes.

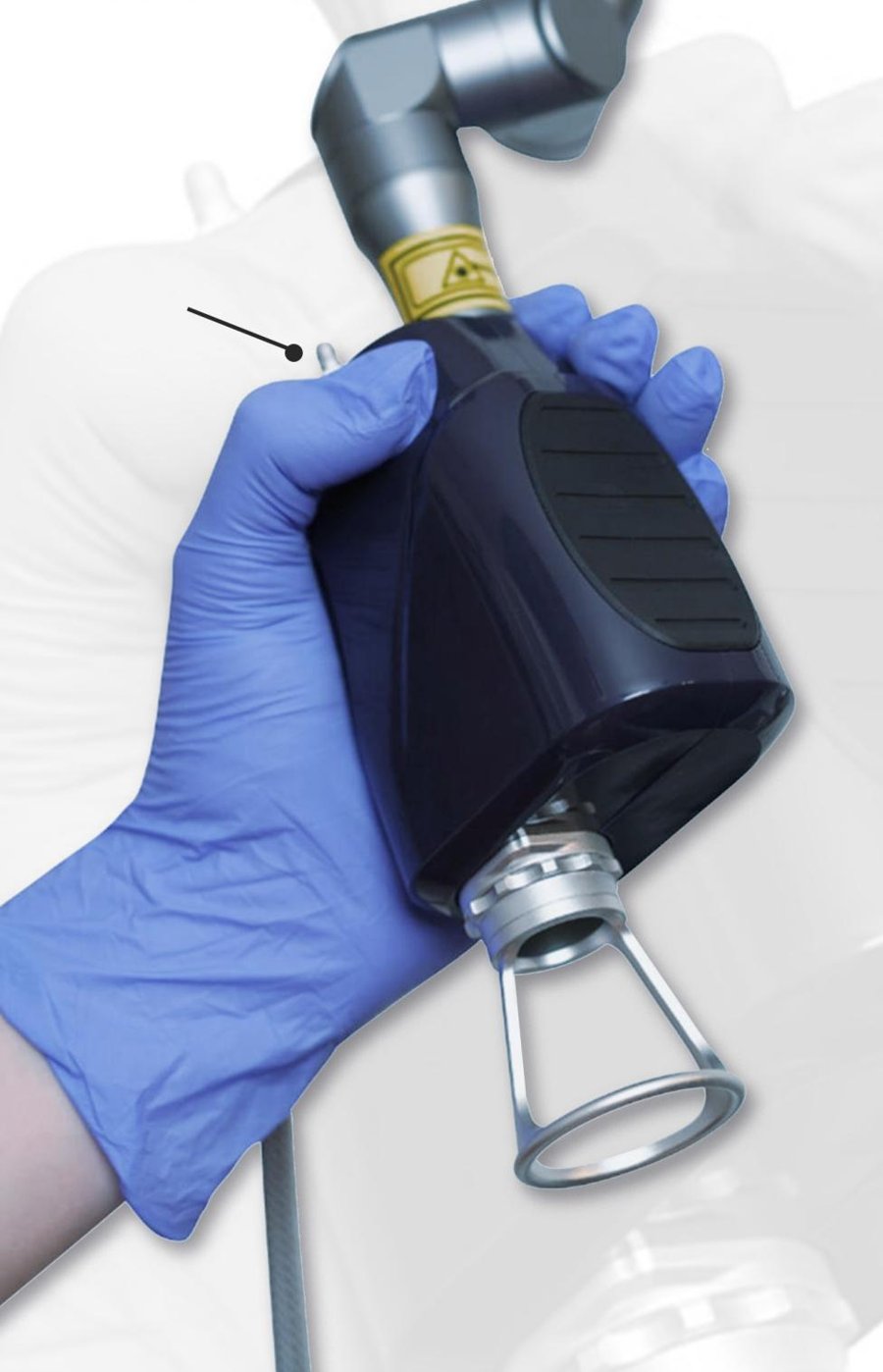

Built-in smoke evacuation
The trachea interface pulls vaporized tissue and debris away during treatment for a cleaner field, better visibility and a safer treatment experience. Accurate scanning keeps pulse-to-pulse energy consistent.

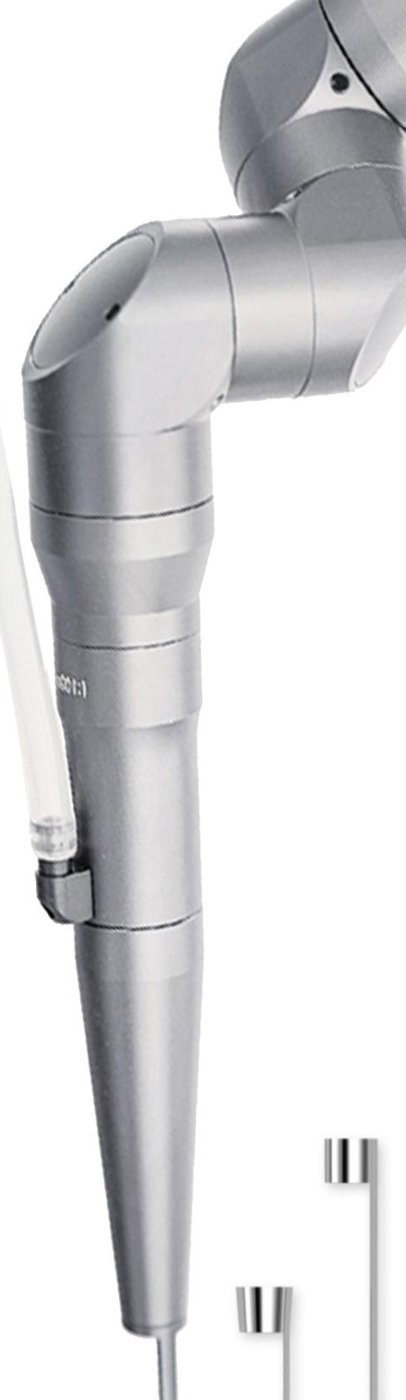

Four cutting modes
Three heads with different penetration depths and four freely switchable modes for precise, clean excision.
- Continuous
- Used as a scalpel
- Single pulse
- Individual lesions
- Multi-pulse
- Large-area growths
- Ultra-pulse
- Superficial growths
FDA indications for use
Body soft tissue vaporization and coagulation in dermatology and plastic surgery, general surgery and gynecology.
FDA 510(k) · Class II · 21 CFR 878.4810 · Rx only
Clinical applications
- Full-face resurfacing
- Wrinkle reduction
- Acne, burn and surgical scar repair
- Hyperpigmentation
- Sun-damaged skin
- Removal of benign skin growths
Clinical results
Real patients treated with CO₂LD
Before images appear on the left or top, after images on the right or bottom, with the parameters used for each patient.
Individual results vary. Identifying features have been obscured to protect patient privacy.
Comparison
Flagship performance, without the flagship price
| Feature | Qold CO₂LD | Lumenis UltraPulse | Lumenis AcuPulse | DEKA Tetra PRO | Lutronic eCO2 3D | Cutera Secret PRO |
|---|---|---|---|---|---|---|
| Power output | 40 W | 60 W | 40 W | 40 W | 40 W | 30 W |
| Scan area | 20 × 20 mm | 15 × 15 mm | 15 × 15 mm | 19 × 20 mm | 15 × 15 mm | 20 × 20 mm |
| Spot size range | 0.10–2.0 mm | 0.12–2.0 mm | 0.12–1.0 mm | Not published | 0.12–0.50 mm | 0.10–1.80 mm |
| Spiral scan pattern | Yes | No | No | No | No | No |
| Built-in smoke evacuation | Yes | No | No | Yes | No | No |
| In-motion scanning | Yes | No | No | Yes | No | No |
| Low-downtime peel mode | Yes (Light) | No | No | Yes (CoolPeel) | Yes | Yes |
Competitor specifications from publicly available manufacturer information. All trademarks belong to their respective owners.
Technical specifications
CO₂LD at a glance
Two industrial designs and a graphical user interface that can be tailored for partners.
- Wavelength
- 10,600 nm
- Power
- 1–40 W
- Scan range
- Max 20 × 20 mm
- Spot size range
- 100–2,000 µm
- Scan modes
- Order, Center, Random
- Treatment modes
- Fractional, Normal
- Fractional modes
- Light, Deep, Fusion
- Output shapes
- Circle, ellipse, triangle, rectangle, square, hexagon, line
- Surgical modes
- Continuous, single, multi, ultra-pulse
- Delivery
- 7-joint articulated arm, 360° rotation
- Screen
- Large touch LCD
- Voltage
- 110 V / 60 Hz, 220 V / 50 Hz
Bring CO₂LD to your practice
Ask for pricing, a clinical data package or a demonstration. CO₂LD has no consumables and includes a one-year service warranty.
